This Motor/Sailor was started in 2014 after a pal went on holiday to the New Forest, and arrived on the day when the Setley Pond MBC were there.. He Photographed two of these models, and when they were viewed, I was hooked. Plans and a CD were organised from the club/members, What a great set of Guys at Setley Pond Club. Scratch build was the order of the day .
She was built with whatever materials i had here, mainly 5mm ply and Obechie strip, 3mm x 5mm.. The keel is laminated , three pices of 5mm and the bulkheads are 5mm. Some bulkheads had patterns made but most was traced then pin pricked onto the ply. A lot of dry fit's took place before the bulkheads were hollowed out , egg-box fashion framing was fitted to the top of the frames again in 5mm ply with some strip Obechie 10mm x 20mm forming the hatch openings. The prop shaft was slotted and built in as the keel was laminated.
Regards Muddy....

..Started on the planking, with 3mm x 5mm Obechie strip, leaving a gap in the planks so as one can see whats going on with the alignment of the prop shaft/coupling. Motor mount formed in 2mm Ally and fitted. Planking was completed, not forgetting the bulkhead that overlooks the well deck, this was veneered, as was the Transom. Deck was laid in 1.5mm ply, but when it was all finished, it did not appeal to me at all, don't know why, so this was later planked to give a better sort'of look, although i believe the original full size is a painted deck. My version is now a Stand Off Scale, the dimensions are very close to scale but the finish has a lot of modelers license. Regards Muddy....

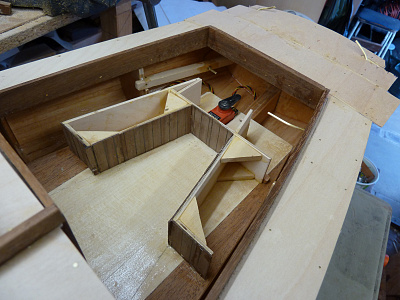

Hello, completion of the deck in ply, urghhh.. Start on the well deck furniture, not forgetting the important boat stand. The HUll banding, in 3mm ply vertical grained then when fixed, veneer applied plus a couple of stringers as rubbing strips.

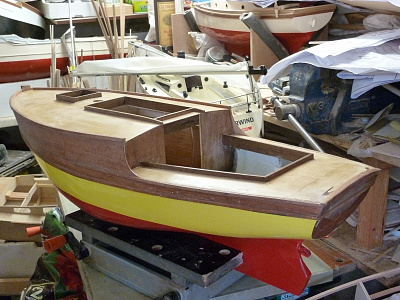

Hello.. Finish the hull belting and flare in the prop shaft. Paint applied. Work on the mast and booms from Pine dowel from DIY shops. Fabricating the rudder, the hinges and bearings were an old Prop shaft and bushes. Decided to scrap the internal servo operating with control line wire to the rudder , mounted the servo as direct as possible, comments received about the rudder is that the original or scale rudder is far to small, so this one was made about 5 times larger, it can always be cut down, but didnt fancy all that work again making a replacement rudder. Rigging the sails is not my Forte', first time so a lot of playing about.
Regards Muddy....

Installing the Radio gear. Planking the Deck in 6mm x 2mm and .5mm Mahogany vertically used as "Caulking". A lot of brass pins.. !... Lead Keel, about 10lb; in weight. it was supposed to be "Let into" the keel, but a lot of extra work, decided to screw it to the bottom, hoping this would give it more stability having a deeper keel. Regards Muddy ....

Continuing on - Grease up the prop shaft. Finalise the rigging.
Another Radio check, with auxiliary motor, then disaster, Lost the hatch top, searched for 1 and 1/2 hours, no where to be found, Out came the saw and we has another cutting session and added some veneer, all was well.

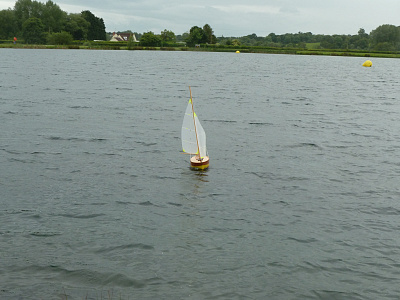

And finally Sail Day... She had float tests after the paint jobs, at another members property, with the gracious help of his young lady, It's her fish pond.. ! Thanks Alan the EDD. And a typical launch, away she went in a breezy day with a back to front rudder, It did not bother me as it's not the first time..lol.. And when she was returned to the cradle guess who had brought along the wrong handbook for the Tx.. This is a typical Muddy sail..
But a bit of "Savy" and all was well and corrections made.
She did sail well and i was not disappointed.. Regards Muddy ....
