1st phase complete - keel plus frames and the slot for the stern tube cut and dowelled back together. Now about to cut the bow and stern blocks and begin the hull planking - a skin of 0.4mm ply and mahogany planks on top.
[{"id":"1520439037","name":"1520439037.jpg","caption":"","url":"https:\/\/de.model-boats.com\/media\/1520439037\/l","thumbUrl":"https:\/\/de.model-boats.com\/media\/1520439037\/s","isImage":true,"ext":"jpg"}]
1st phase complete - keel plus frames and the slot for the stern tube cut and dowelled back together. Now about to cut the bow and stern blocks and begin the hull planking - a skin of 0.4mm ply and mahogany planks on top.
Slow progress recently, partly due to snow(!) but also because I have had some engineering to catch up on. Anyway, I have cut and fitted but not completed shaping the bow and stern blocks, fitted the prop shaft and fabricated the rudder assembly. This was silver soldered using a little piece of 3mm silver steel and sheet and channel brass. Yes, the keel looks a bit of a mess in this area but I am going to cover the ply with mahogany veneer to match the planking when I have completed that, and of course it will all be painted below the water-line. I also made a rough cradle to keep the boat steady while working on it - to be replaced with a posh one when everything is done!
[{"id":"1521543246","name":"1521543246.jpg","caption":"","url":"https:\/\/de.model-boats.com\/media\/1521543246\/l","thumbUrl":"https:\/\/de.model-boats.com\/media\/1521543246\/s","isImage":true,"ext":"jpg"},{"id":"1521543262","name":"1521543262.jpg","caption":"","url":"https:\/\/de.model-boats.com\/media\/1521543262\/l","thumbUrl":"https:\/\/de.model-boats.com\/media\/1521543262\/s","isImage":true,"ext":"jpg"}]
Slow progress recently, partly due to snow(!) but also because I have had some engineering to catch up on. Anyway, I have cut and fitted but not completed shaping the bow and stern blocks, fitted the prop shaft and fabricated the rudder assembly. This was silver soldered using a little piece of 3mm silver steel and sheet and channel brass. Yes, the keel looks a bit of a mess in this area but I am going to cover the ply with mahogany veneer to match the planking when I have completed that, and of course it will all be painted below the water-line. I also made a rough cradle to keep the boat steady while working on it - to be replaced with a posh one when everything is done!

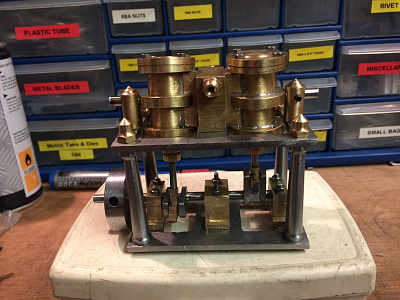

Just in case anybody wondered, I am still alive (!) but have had a very busy couple of months. What with the birth of a 5th grandchild, the baptism of my only granddaughter plus plenty of gardening and additions to my collection of bearded iris there has been llittle time for model engineering or building Miranda’s hull, although the engine is more or less complete and just about running on compressed air. Oh the joys of being retired - no time to do anything!
Just in case anybody wondered, I am still alive (!) but have had a very busy couple of months. What with the birth of a 5th grandchild, the baptism of my only granddaughter plus plenty of gardening and additions to my collection of bearded iris there has been llittle time for model engineering or building Miranda’s hull, although the engine is more or less complete and just about running on compressed air. Oh the joys of being retired - no time to do anything!
